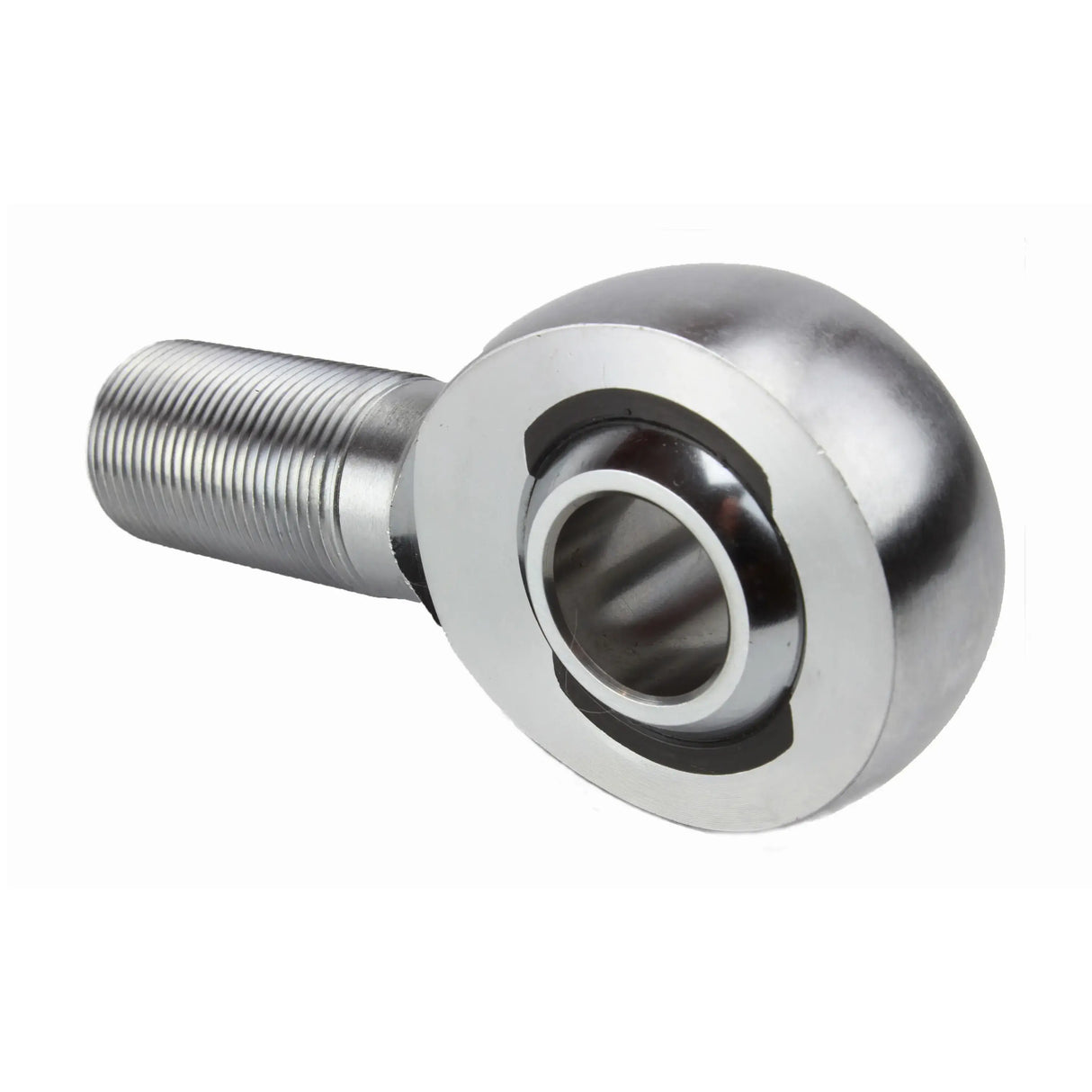

7/8" x 3/4" Rod End Right Hand (14 TPI)
This is a 7/8" shaft with a 3/4" bore (14TPI). Sometimes smaller in the right places is better! Don't let the price confuse you, these are high quality Heat Treated Chromoly rod end, they are definately not a cheap mild steel heim.
The 4130 Chromoly housing has a hard chrome finish and the Ball is made from 51200 bearing steel and heat treated with a hard chrome finish. The race is made from injection molded Teflon impregnated Nylon.
Approximate Ultimate Radial Static Load - 55,600lbs. These are not tested to breaking point, they are tested to first deformation, that is a key point, deformation is not breaking. Some of the other companies test to destruction, I believe if they tested using the same methods the results would be very close, if not the same.
Tri Flow is the only product we recommend to service our rod ends, use of other products such as WD-40 or Blaster is never recommended and will void any warranty
