Universal Shackle Flip Kit

Universal Shackle Flip Kit

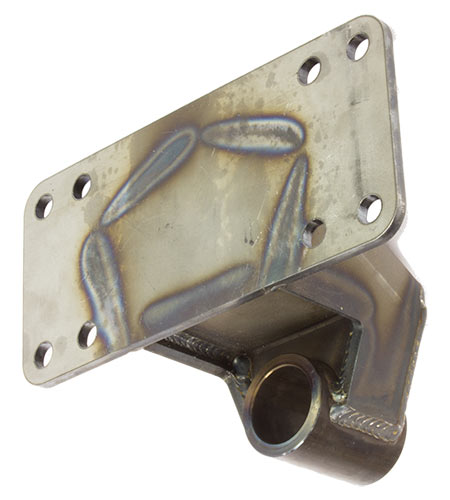

The bushing sleeve is 2" x .25 wall DOM and is attached on four sides to the 1/4" plate torsion box mounting bracket. This enclosed design eliminates the need for any additional gusseting other kits require. The Bushings themselves are 1 1/2" in the minor diameter so you can flex them hard without tearing up the bushings and the bushing shoulder is 1/4" thick for the same reason. If you intend to bolt them on, we would recommend removing the gas tank to install them. They mount through 4 holes you need to drill and after removing the gas tank (if necessary) should take no more than 45 minutes to install. To help you determine your ride height and shackle length, the center of the shackle eyelet sits about 1 1/8" below the mounting plate. You should always use a shackle length that is ideal for your chosen springs.

Everything in the picture is included, on the shackles we offer either a 4", 5", 6", or 7" long.

Bushing sleeves and shackles will be made to accept 9/16" hardware

MADE TO ORDER

We need a couple of questions answered before we can make these for you.

• Measurement A: What is the distance between the frame and the inner side of the bushing in the leaf spring?"
• Measurement A may be no greater than 3" and no less than .75"

• Measurement B: How wide are your leaf springs at the bushing? Measurement B can be no smaller than 2.5" (for 2" wide spring) and no larger than 4"

All custom widths will be within .010" of requested size

Note

• These hangers are made to order, all sales are final and cannot be returned or changed once submitted
• Please allow a 4 business day turn around time for our shop to build your kit

Additional Products You May Want When Installing This Kit

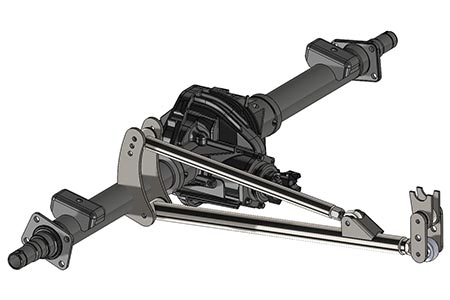

HEAVY DUTY ANTIWRAP/TRACTION BAR COMPLETE KIT
