Ford 9" Weld On Disc Brake Brackets, 3.5" Tubes

SKU: R1261 Ford 9" Weld On Disc Brake Bracket Pair 3.25"-3.5" Axle

Click image to zoom

Description
Reviews

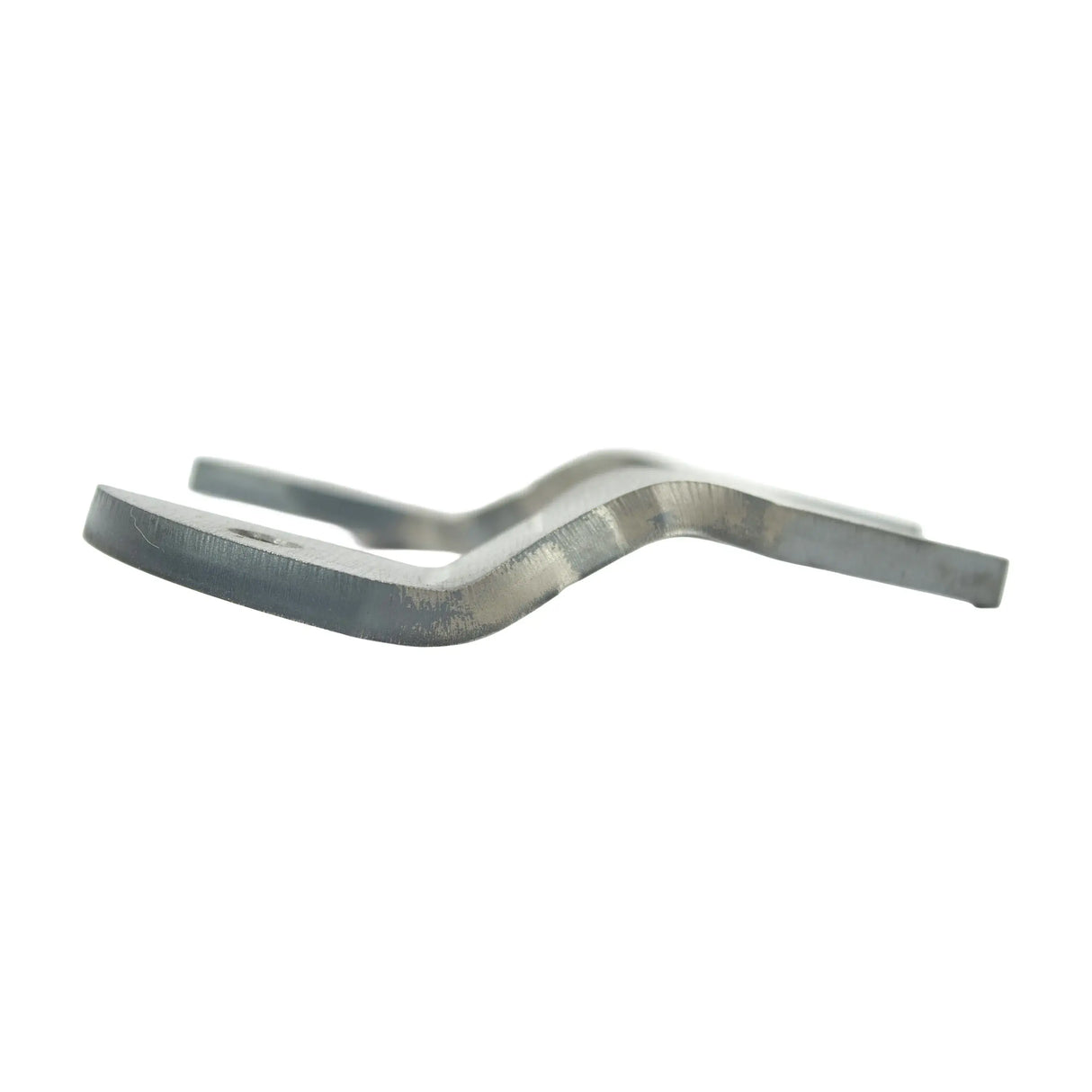

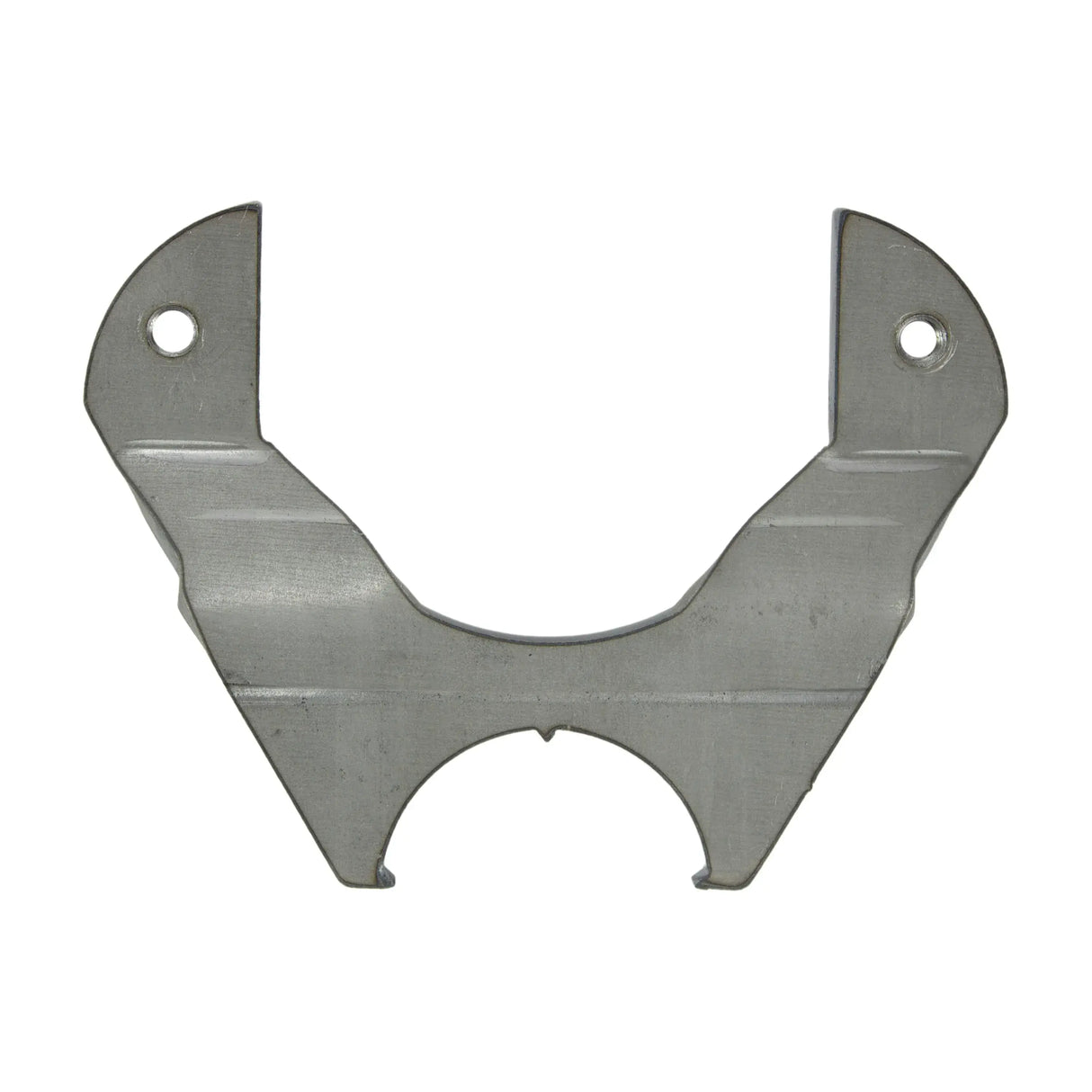

Ford 9" Weld On Disc Brake Bracket Pair 3.25"-3.5" Axle

These can be used on 3.25"- 3.5" diameter axle tubes and are made for the 11.75" diameter Bronco 5 on 5.5" rotors and the inexpensive '73-87 Chevy 3/4 ton 4x4 front caliper. You can use any of the 20 or so high performance calipers that share the 7.05" caliper pin spacing also but the Chevy seems more than good enough for nearly everyone.

These are 3/8" thick

Sold in pairs

Use these brackets with our calipers found here GM Dual Bleeder Loaded Brake Caliper (ruffstuffspecialties.com) or Cadillac El Dorado Caliper Set with Parking Brake Lever (ruffstuffspecialties.com)

Requires steel wheel 15" with a maximum 4" back spacing

NAPA Part numbers for Front 4x4 Chevy Calipers and Bronco Rotors:

Caliper ONLY: LH - N4674, RH - N4673 - Both of these are LATER year part numbers

OR

LH - N4597, RH - N4596 - Both of these are EARLIER year part numbers

Ford 9" Rotor - NB 4885611 Premium Rotor. To use as a slip over rotor you may need to turn down your axle shaft flange

UP 85611 Ultra Premium
