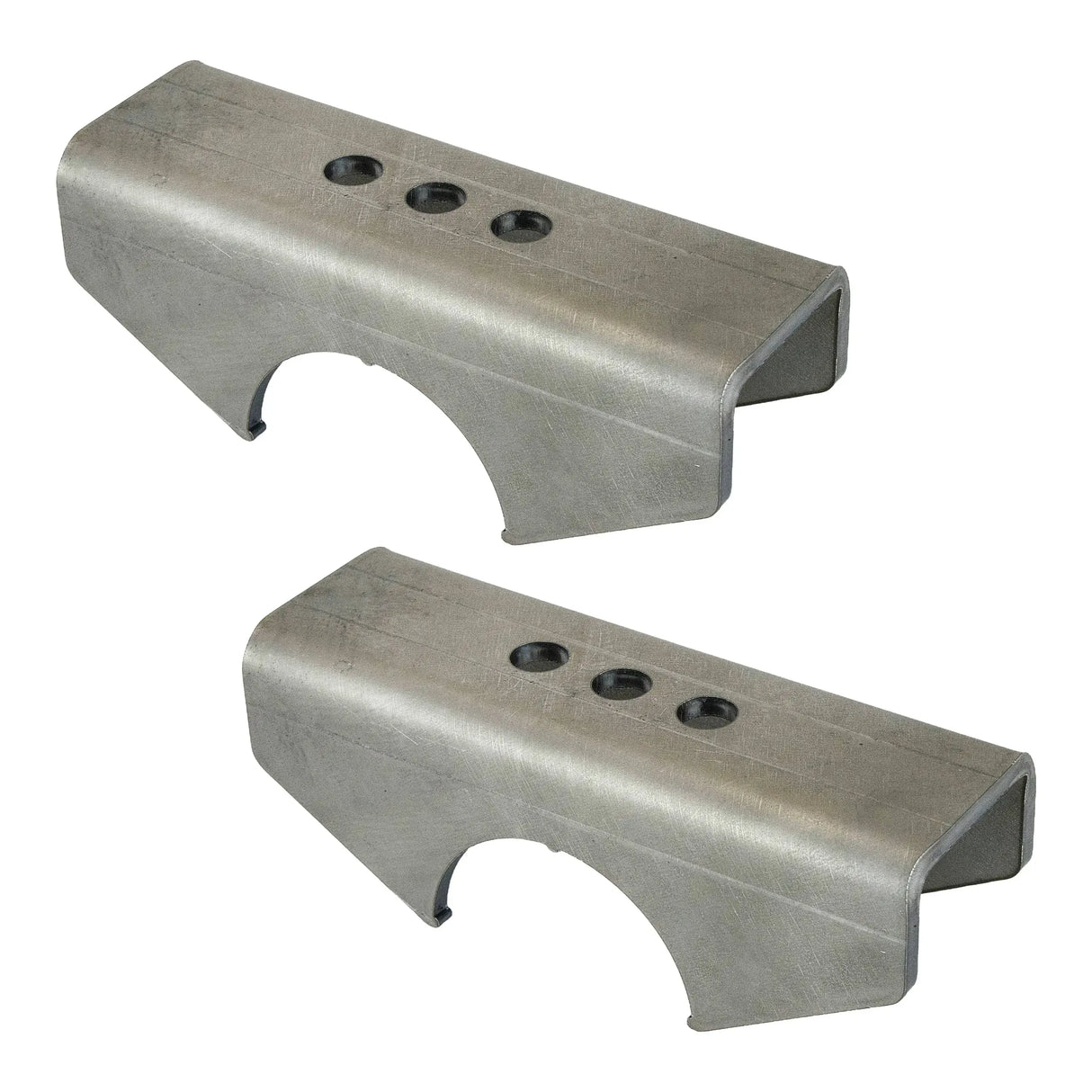

Tall Spring Perch Pair, 3.125", 3.25" Axle Tube 2.5" Wide

Tall Spring Perch Pair, 3.125", 3.25" Axle Tube 2.5" Wide

This perch is a 1/2" higher then our Standard Spring Perches. It's made from .25" (1/4) HR P&O Steel Plate, CNC Laser Cut and then Folded on a 290 ton CNC Brake to final size. It's cut to fit a 3 1/4" axle tube but they have three 1/16" nubs so they fit a 3 1/8" tube out of the box, grind off the 3 tiny nubs and they fit 3-1/4" axle tube. We originally designed this for our GM Dana 60 Front Axle Swap Kit to match the height of the perch built into the casting. This perch sit's at 1.309" from the nub in the axle radius to the top of the spring perch and if you cut the nubs out it sits at 1.234". Sold in Pairs
