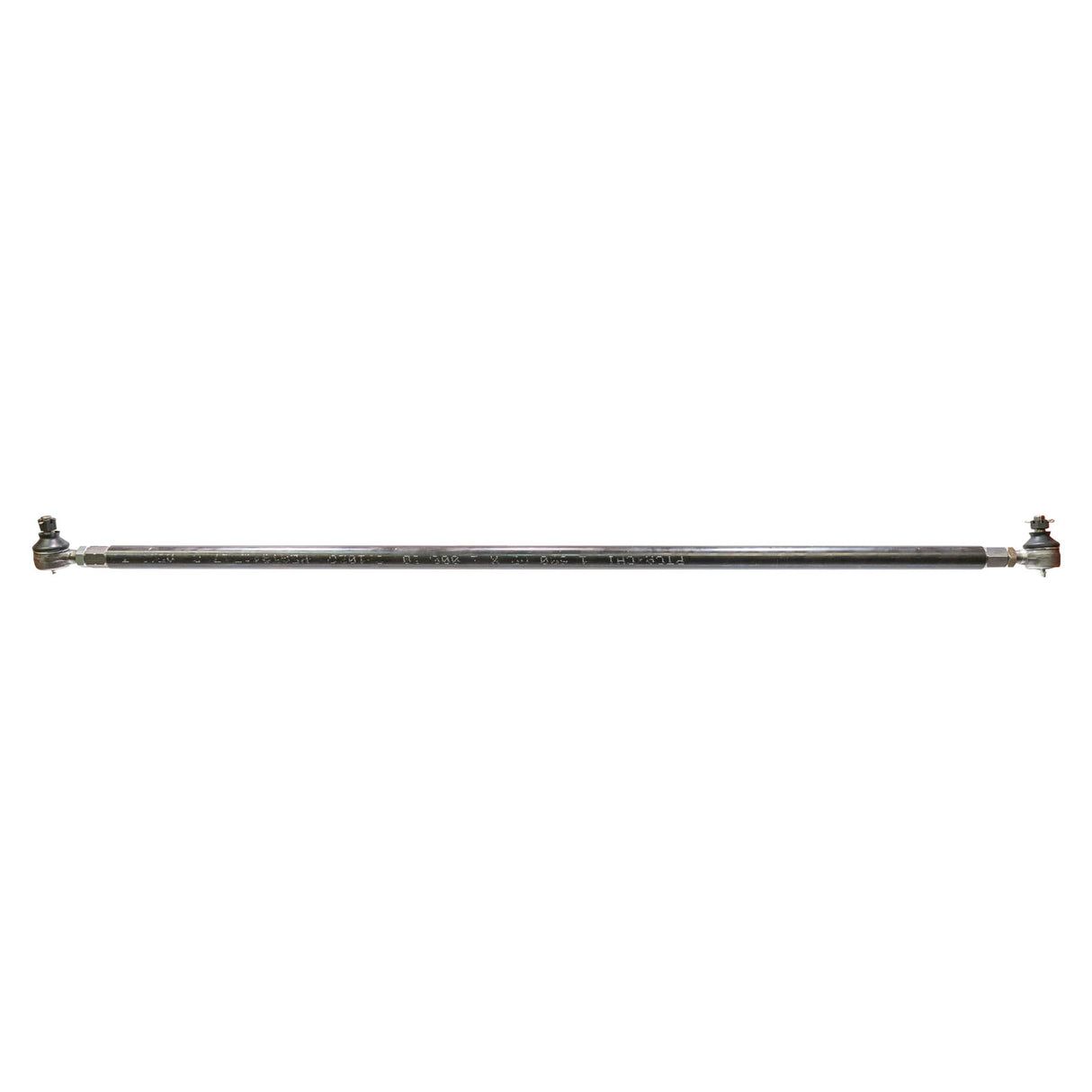

Standard 1 Ton Tie Rod Kit

Standard 1 Ton Tie Rod Kit

Due to high demand please allow a 3-5 business day turnaround on Steering Kits

This is just what the doctor ordered when you just jammed a rock with the stock 1/16" thick tie rod or a solid tie rod. These are 1.5" in diameter and .25" thick and can take a hit over and over again so do it right the first time with something serious from Ruffstuff!

The Taper is .749"-.748", if you are replacing a smaller TRE you will want to ream the taper to .75".

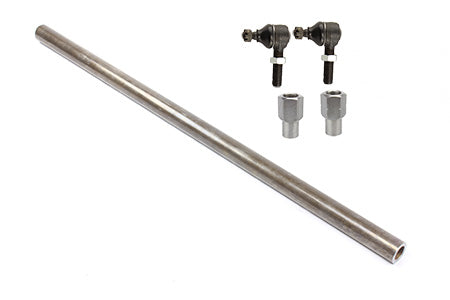

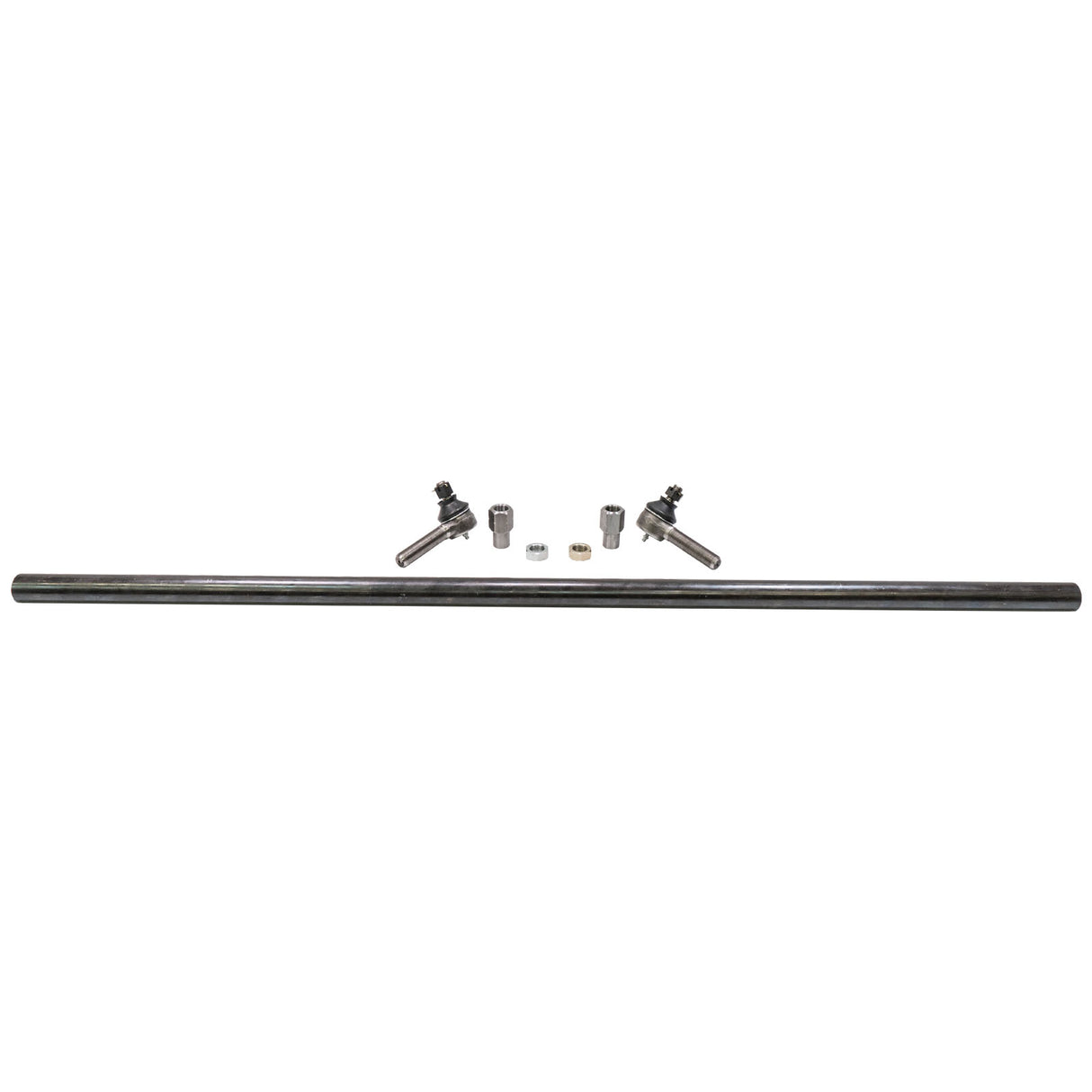

Kit Includes:

• 1 54" of 1.5" X .25" wall DOM tubing

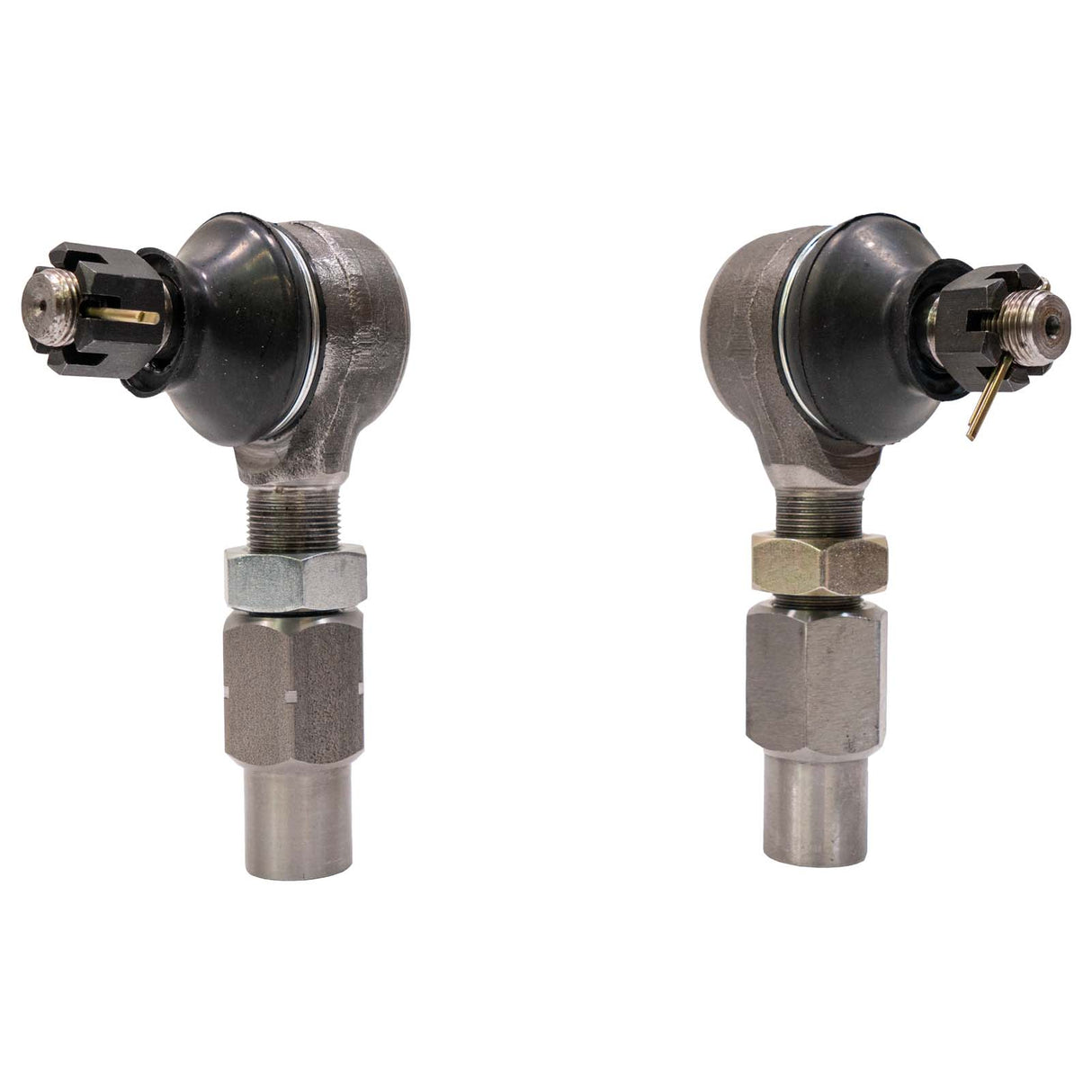

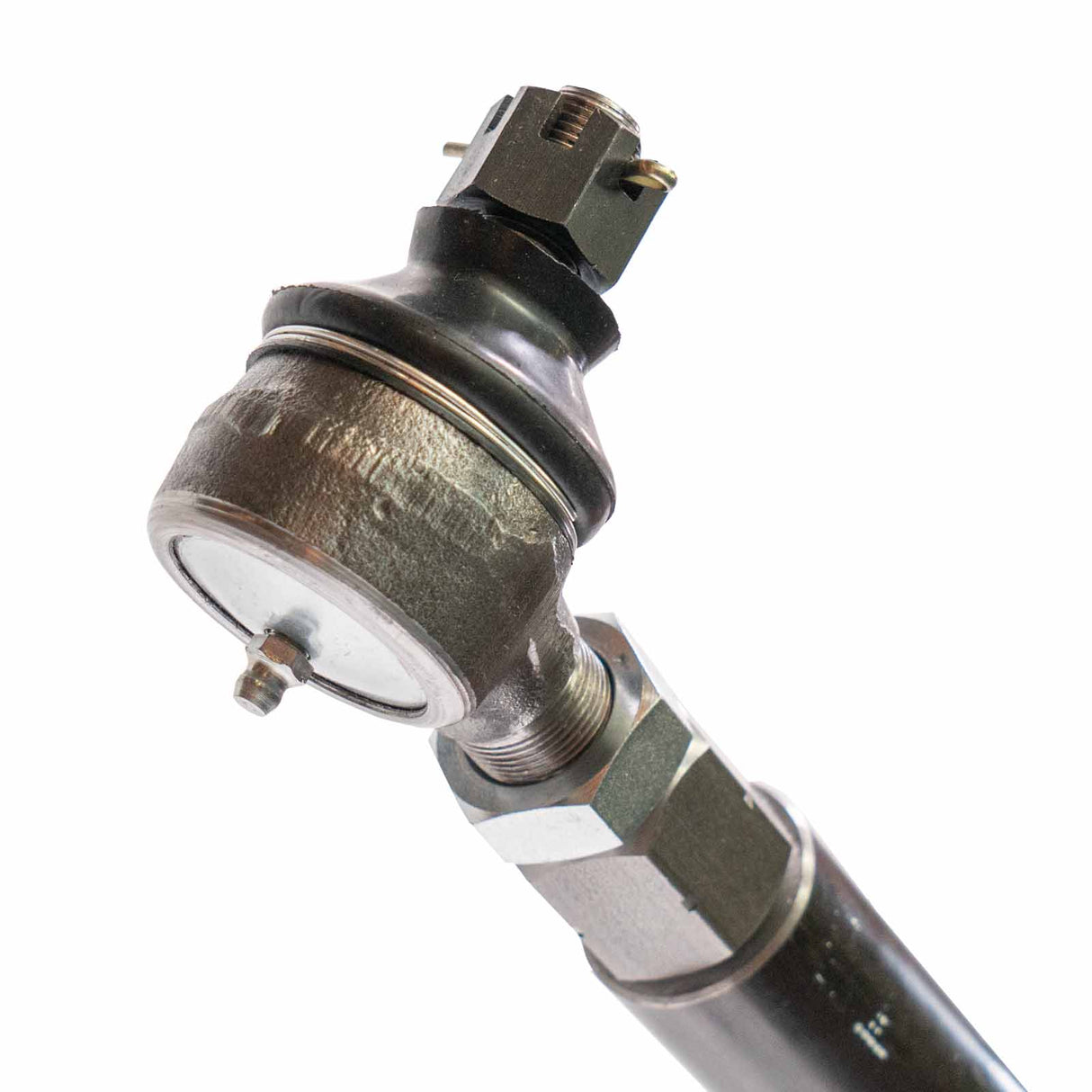

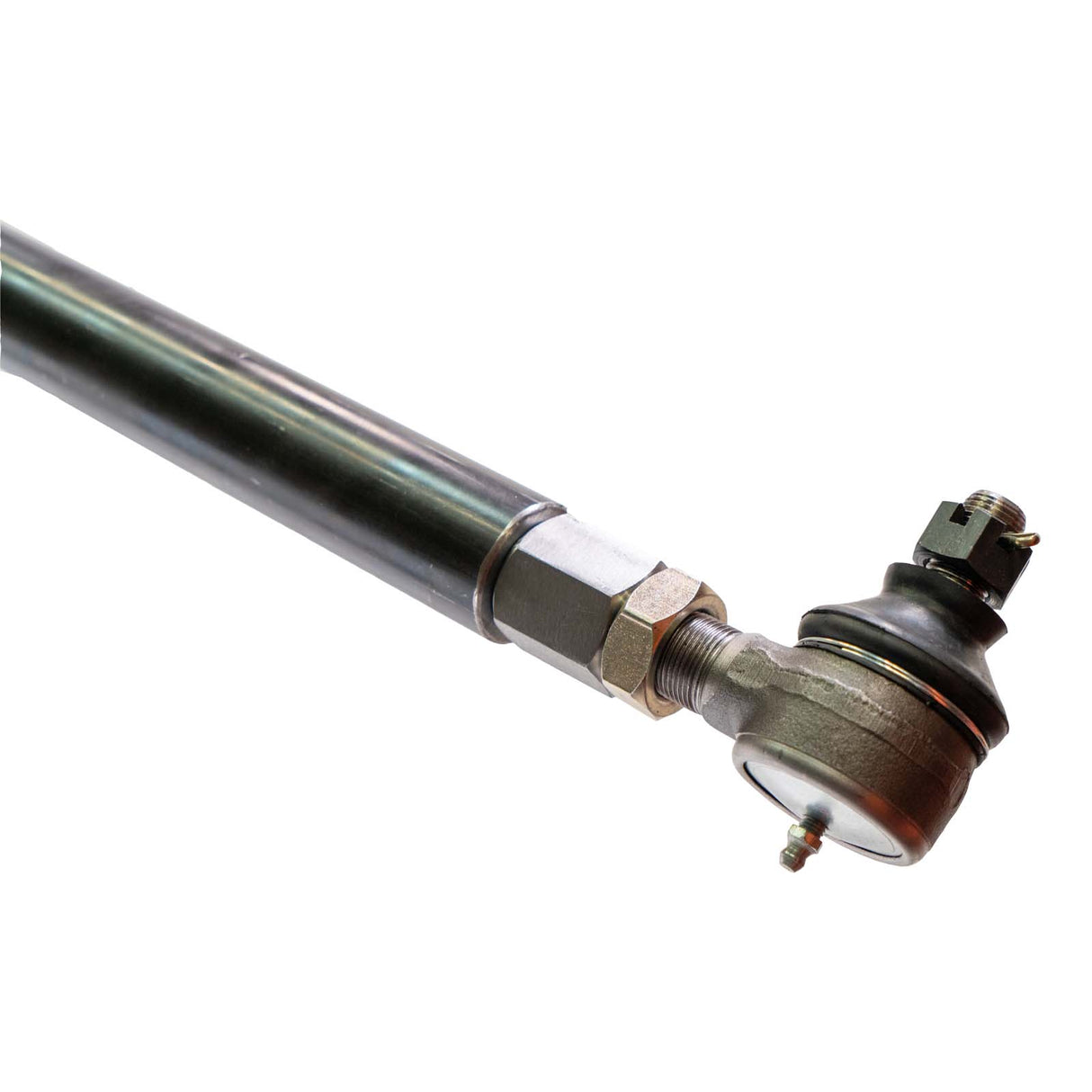

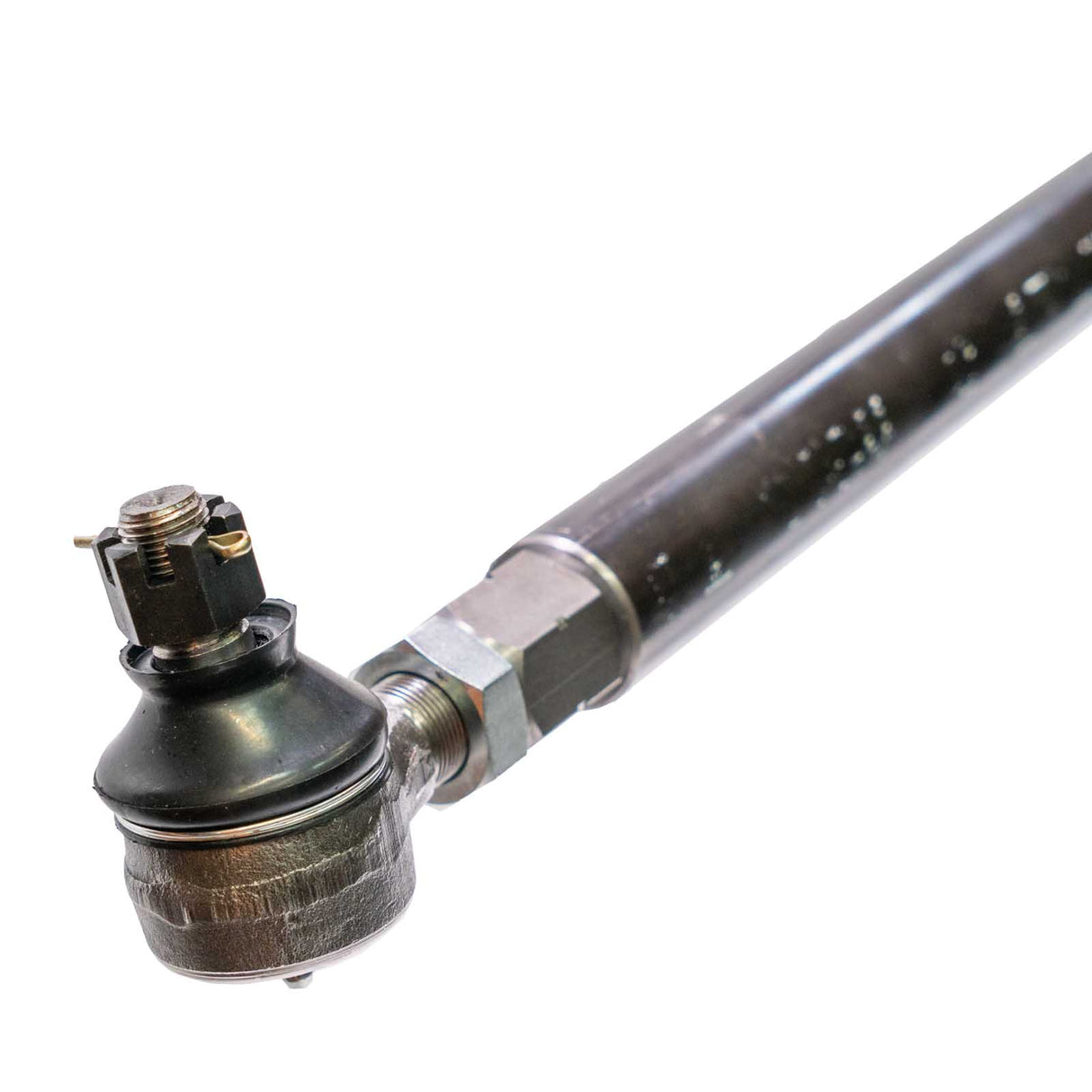

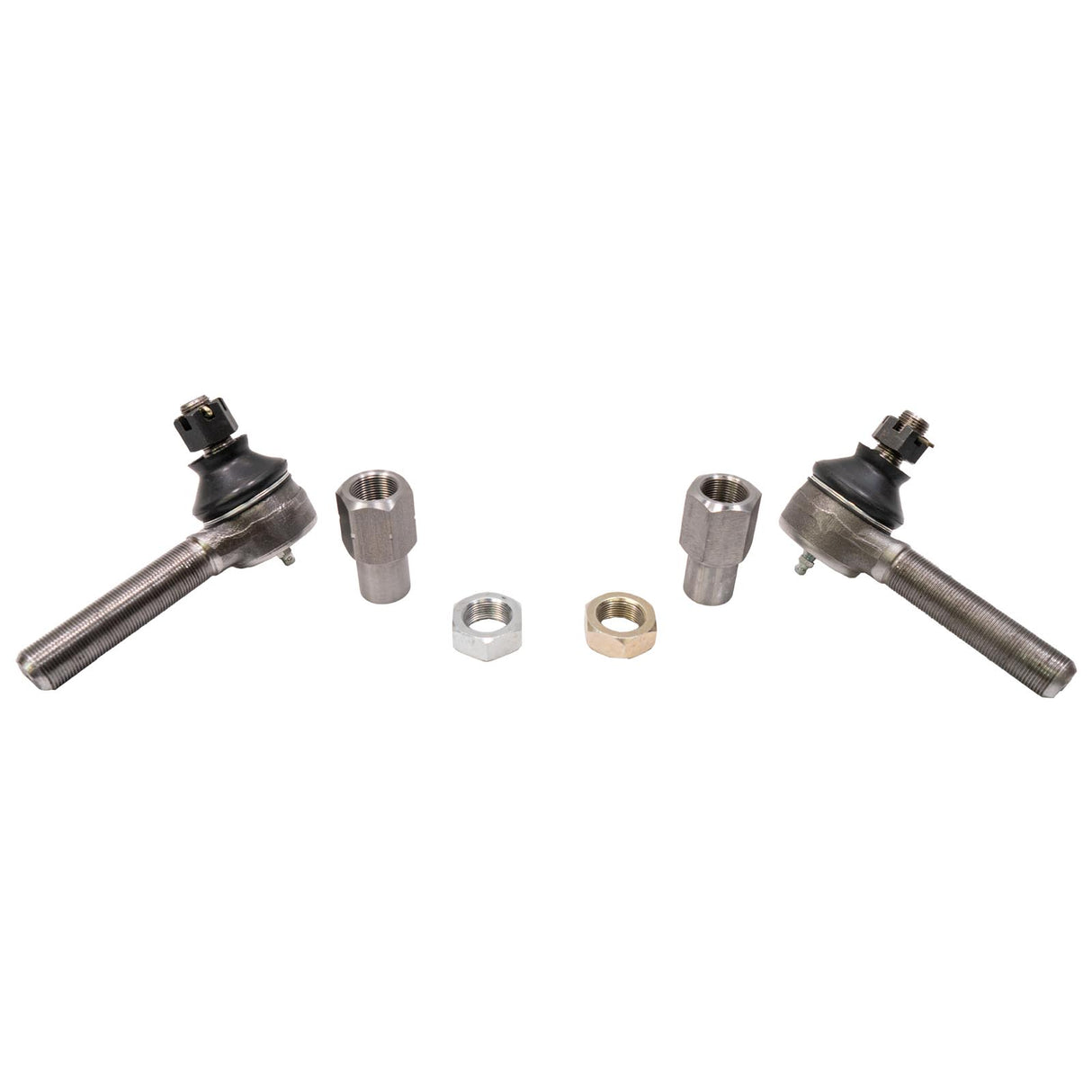

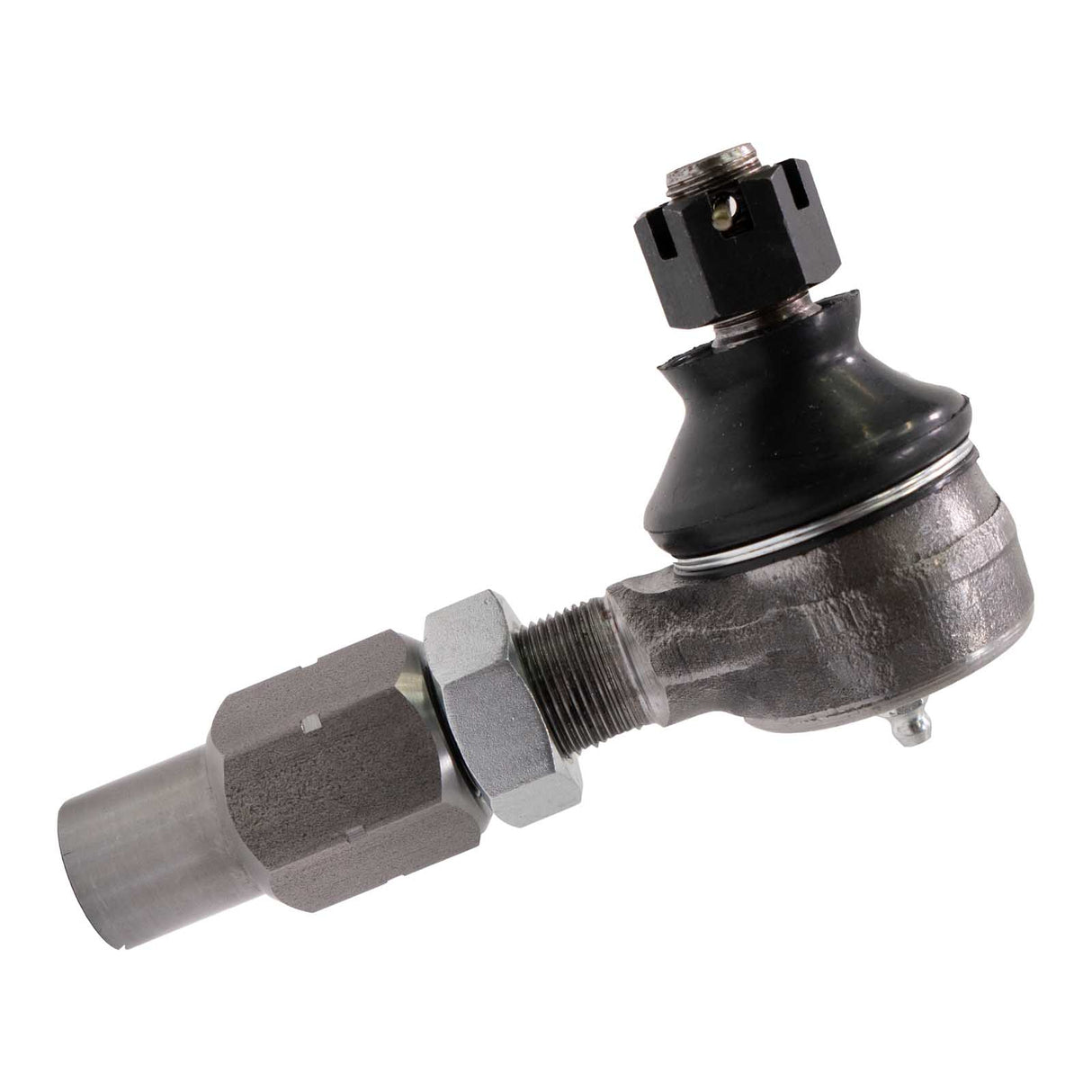

• 2 Standard Tie Rods with castle nuts

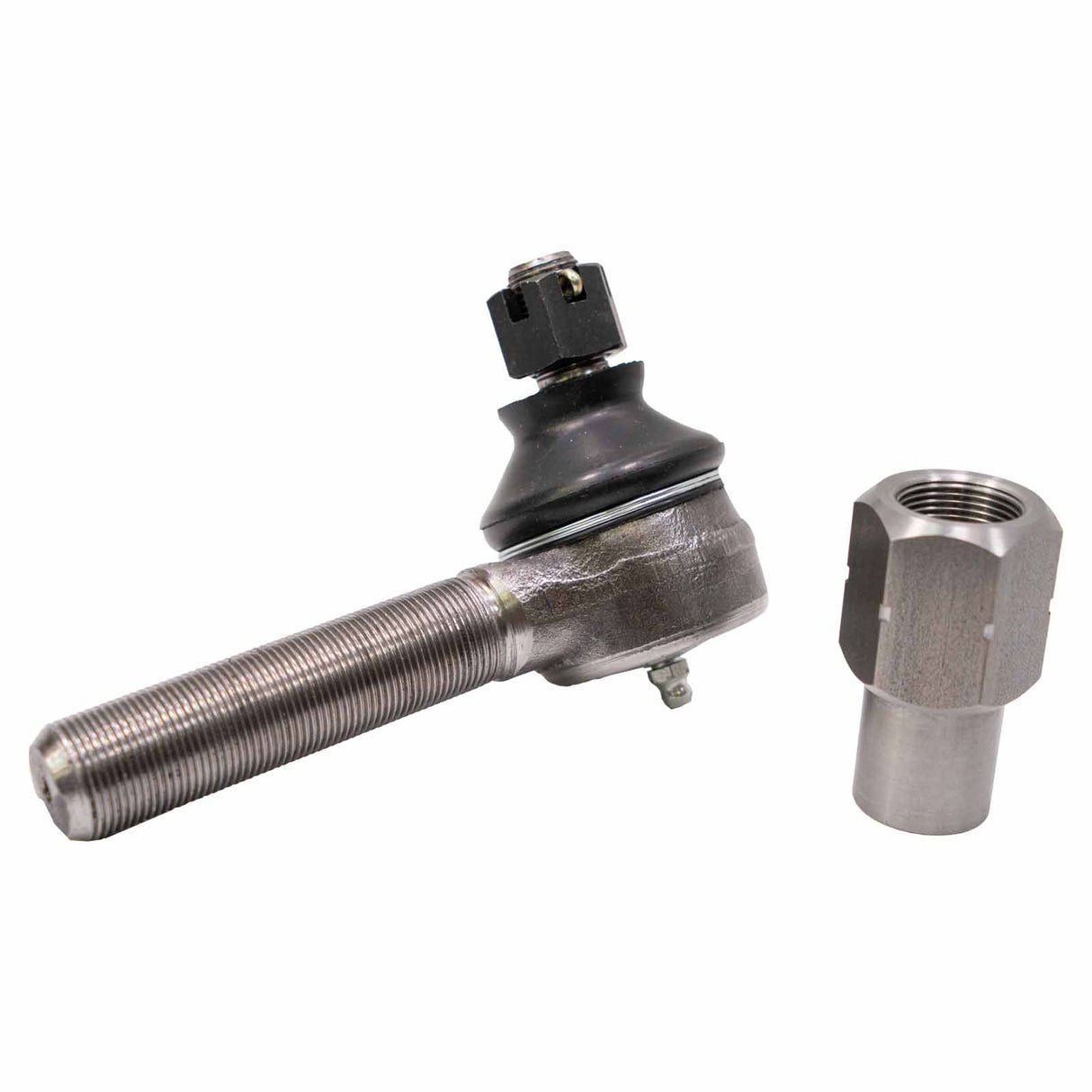

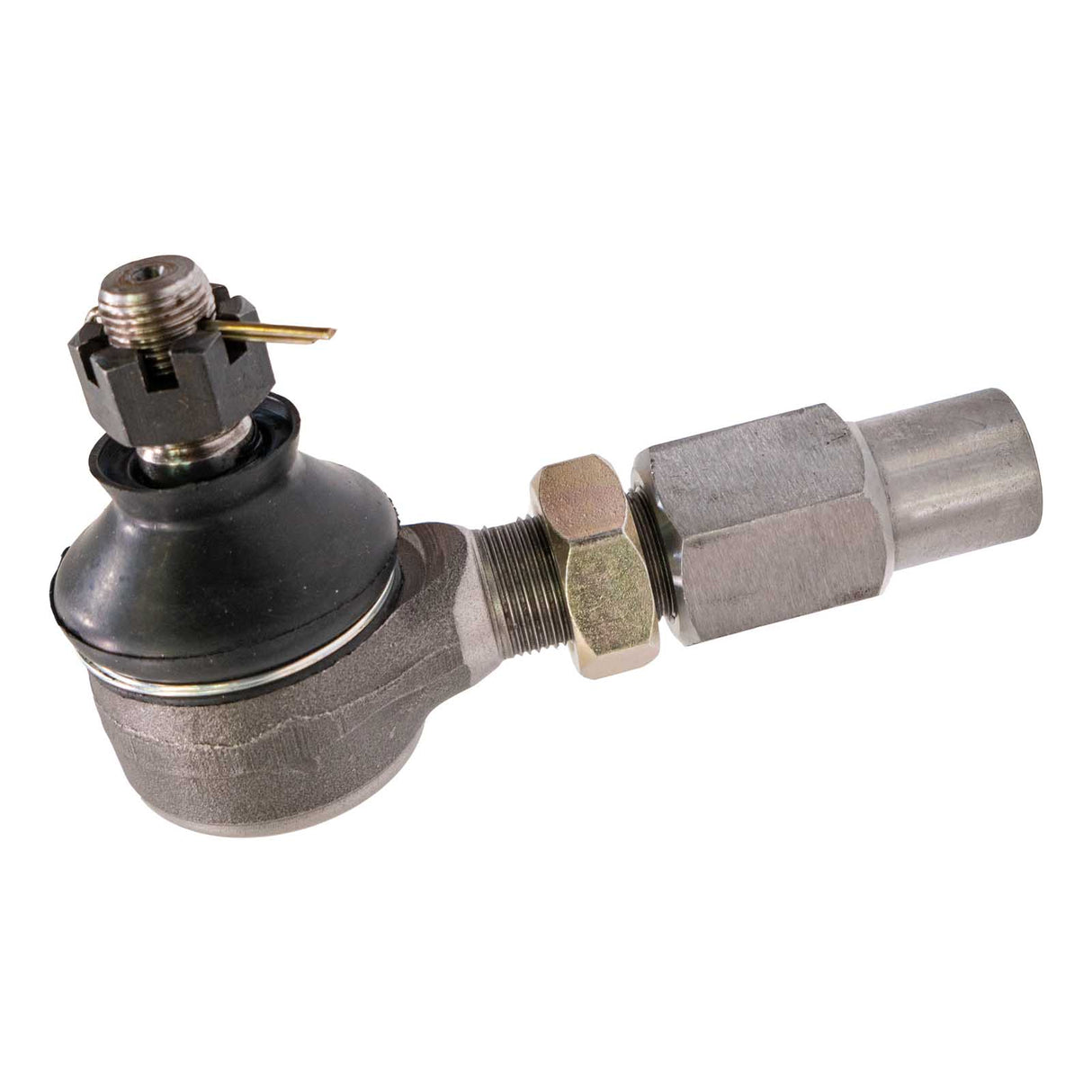

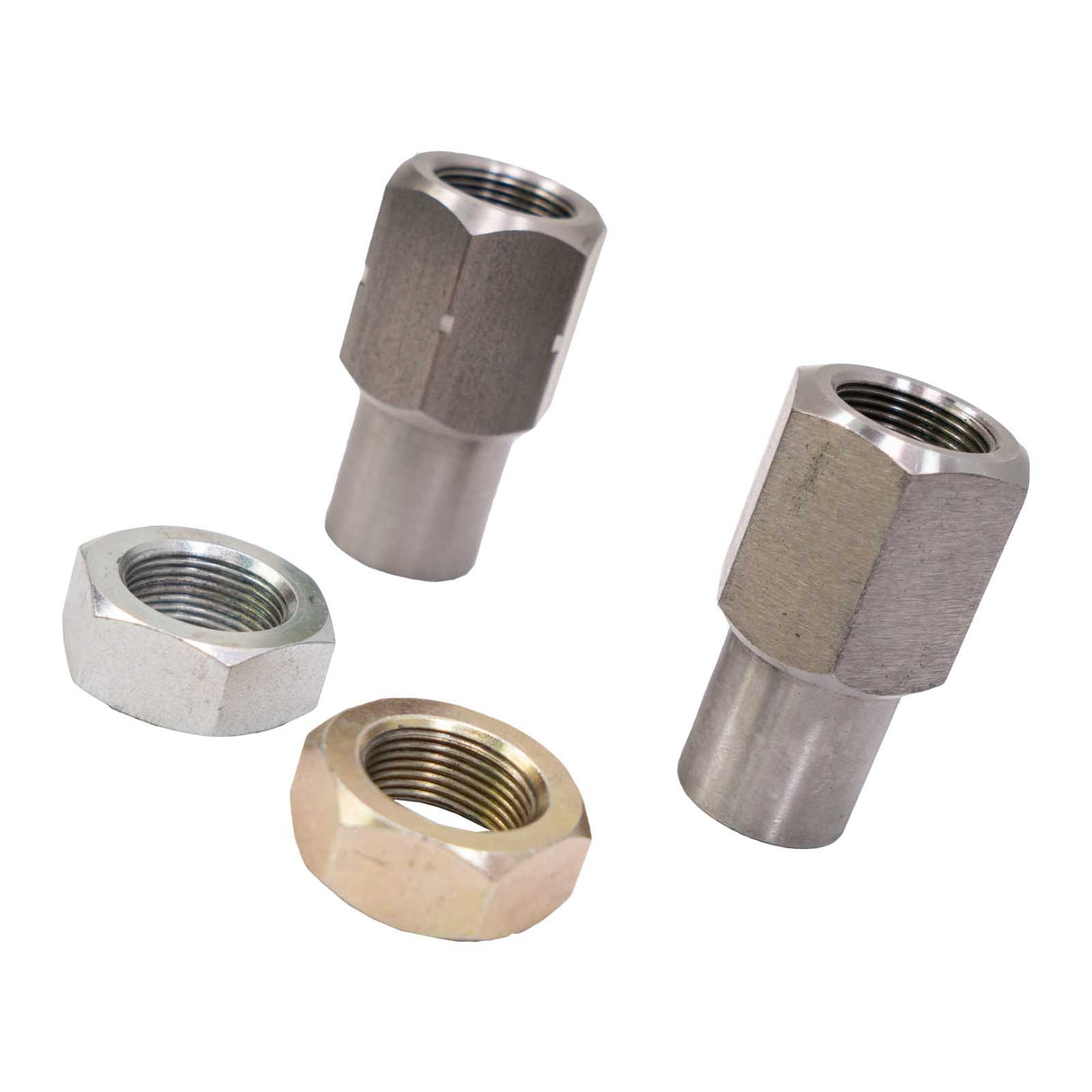

• 1 RH - 7/8" Hex Head Weld Bungs, 18TPI for Tie Rod Ends
• 1 LH - 7/8" Hex Head Weld Bungs, 18TPI for Tie Rod Ends
• 1 RH - 7/8" Jam Nuts, 18TPI for Tie Rod Ends
• 1 LH - 7/8" Jam Nuts, 18TPI for Tie Rod Ends

This is a do it yourself style kit that requires welding by a competent person with the right equipment, don't skimp, do it right! You will need to check clearances with the steering at lock to see if you need to add any bends before you cut it down to clear diff covers, sway bar mounts, etc.

Additional Products you may need to install this kit:

• Tapered Knuckle Inserts. (Standard GM taper)
• 90 Degree Steering Stabilizer Bracket
• Flat Mount Steering Stabilizer Bracket
