SKU: R1697 Ruffstuff 1.50" OD Steering Tube Clamp
Do not use 1/2" threaded bolt for Hydro Assist Steering. Welding some tabs to double sheer the hydro assist mounting hole when using this Tie Rod OD Clamp. Clamp bolt torque 8-10ftlbs. Tested up to 12,000 lbs before the clamp slips on the tube.

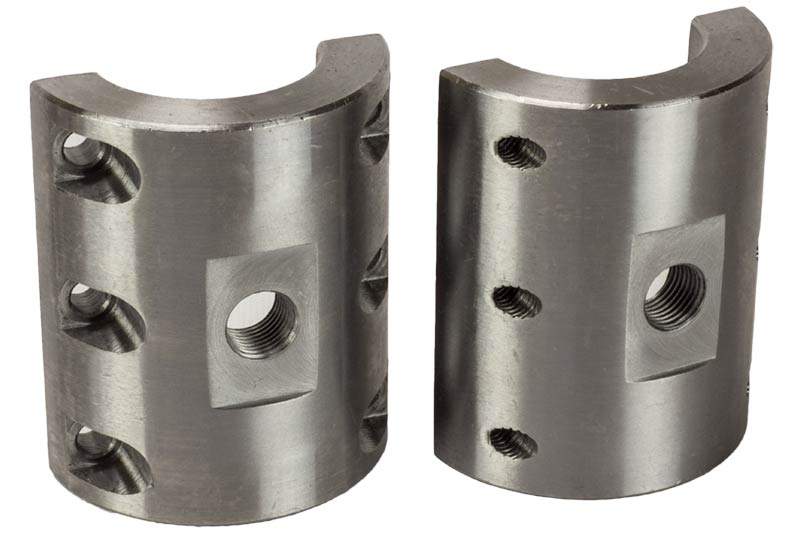

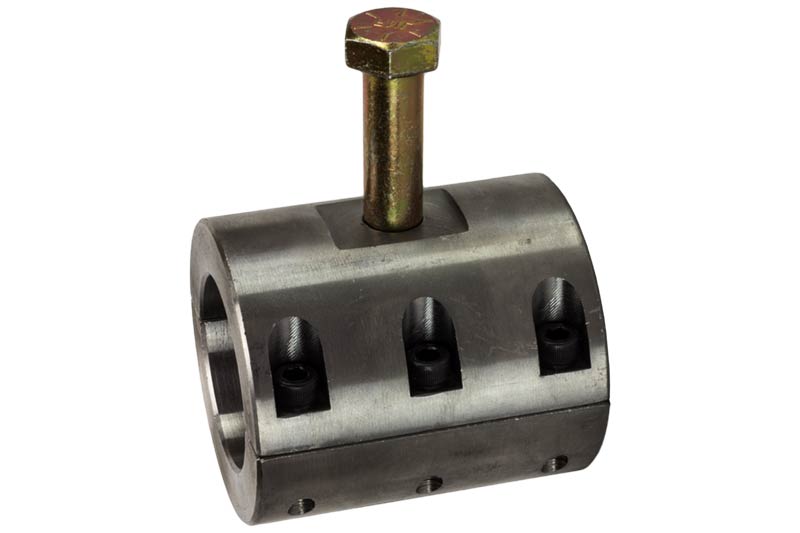

6 bolt tube clamp for 1.5" outside diameter tube. Made from 1/2" wall DOM tube and uses 1/4" allen head bolts

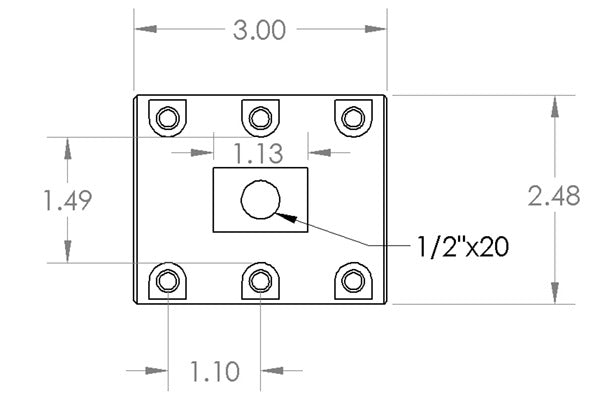

Clamp itself has 1.5" ID and 2.5" OD. This is designed to go on tubes with a 1.5" OD.
