Ruffstuff Heavy Duty Drag Link Kit For Jeep JK

Ruffstuff Jeep JK Heavy Duty Drag Link Kit

2007-2018 Jeep JK Specific Drag Link fully welded. Only requires reaming of knuckle and pitman arm to accept the GM 1 ton taper. This kit comes with a fully welded draglink made from 1.5" x .25" thick DOM Steel Tube prefit for the JK axles. At the knuckle we use a heavy duty GM 1 Ton Offset Tie Rod End with a double adjuster tube adapter. At the pitman arm we use a GM 1 Ton High Angle Drag Link with our standard hex tube adapter.

Note

• You will need to ream your knuckle's taper to accept the GM 1 ton TRE's
• Designed to be used in the stock location with up to 3.5" of lift with an adjustable pan hard bar.
• COMES PROFESSIONALLY WELDED!

Kit Includes

• 1-Offset Tie Rod
• 1-High Angle Drag Link End
• 1 RH - 7/8" Hex Head Weld Bung, 18TPI for Tie Rod Ends
• 1 LH - 7/8" Adjustable Threaded Tube Bung, 18TPI for Tie Rod Ends
• 1 RH - 7/8" Jam Nut, 18TPI for Tie Rod Ends

Additional Products you may need when installing this kit:

Reamer For Gm 1 Ton TRE's

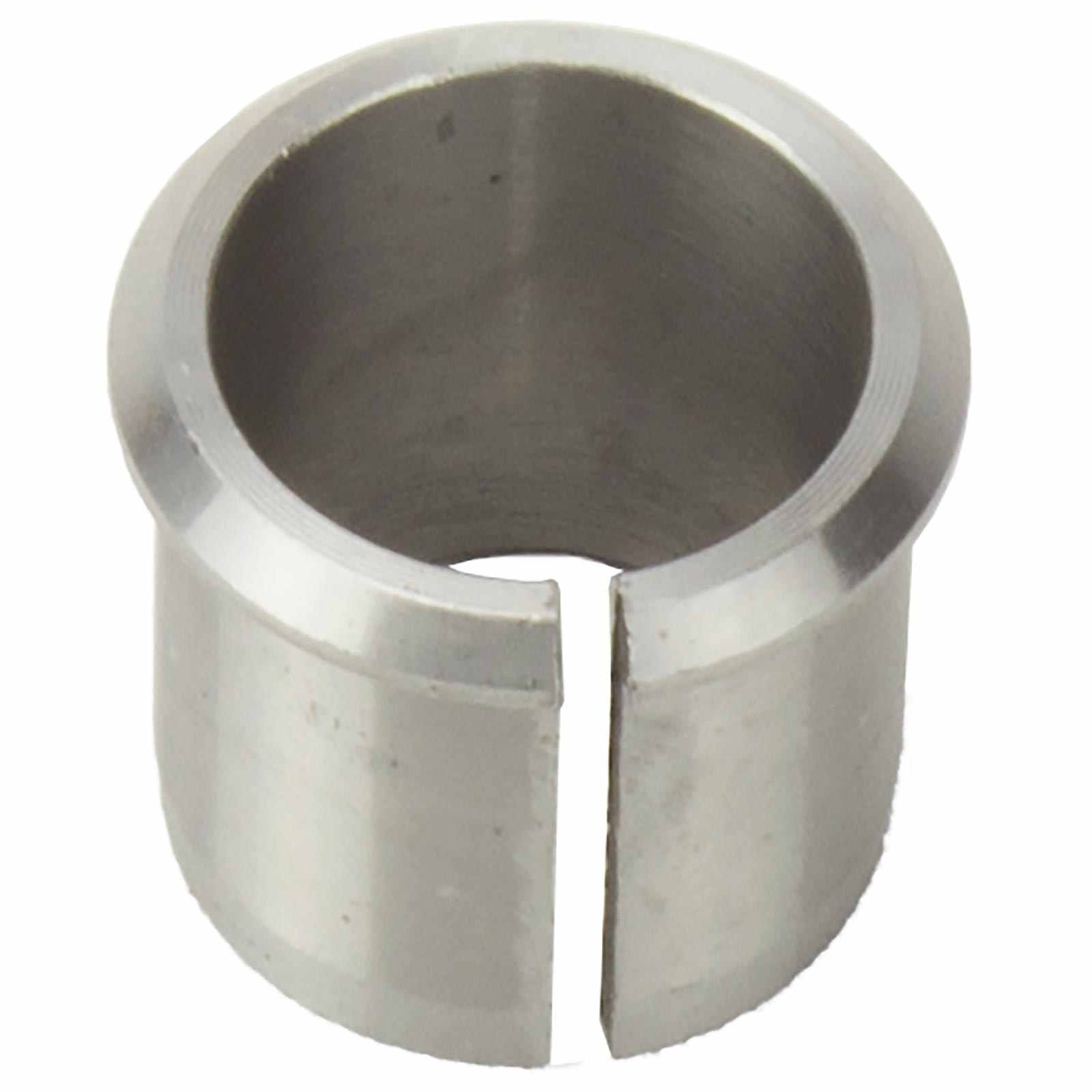

High Angle Tapered Knuckle Inserts

Tapered Steering Knuckle Inserts
