Kingpin Dana 60 Y-Link High Steer Kit (Springless)

Dana 60 Y-Link High Steer Kit (Springless)

First off let me tell you why you want a Y Link style steering kit. Because the ability to plug and play into nearly any front end make it an overwhelming choice when rebuilding the steering, or swapping and/or moving an axle forward. On top of those reasons it makes the alignment of the Drag Link and Track Bar in both length and angle much easier. They are very simple to set up and ideal for many rigs that seem impossible to fit up a standard steering system. Together, all these reasons make them very difficult to pass up!

All of our steering kits are made of the best and strongest materials available. We use only 1.5" x .25" DOM Tubing with Hex Head bungs for adjustability. Our TRE's are all from the best forgings with metal on metal bearing surfaces and the correct Ackerman angle machined on our Hi Steer arms cannot be ignored. All of our Hi Steer arms also come with 2 holes so they can easily be used with Hydraulic or Hydraulic assist steering rams. All Hi Steer arms are also drilled for Reid Knuckles, if you have standard knuckles simply ignore the last hole.

Note

• Due to high demand please allow a 3-5 business day turnaround on Steering Kits
• This is a do it yourself style kit that requires welding by a competent person with the right equipment, don't skimp, do it right!
• You will need to check clearances with the steering wheel at lock to see if you need to add any bends before you cut it down to clear diff covers, sway bar mounts, etc.
• Chevy's require changing from 4wd steering box to 2wd steering box
• Dodge requires relocating the steering box to the 2wd drive position and shortening the steering shaft from the box to the steering wheel

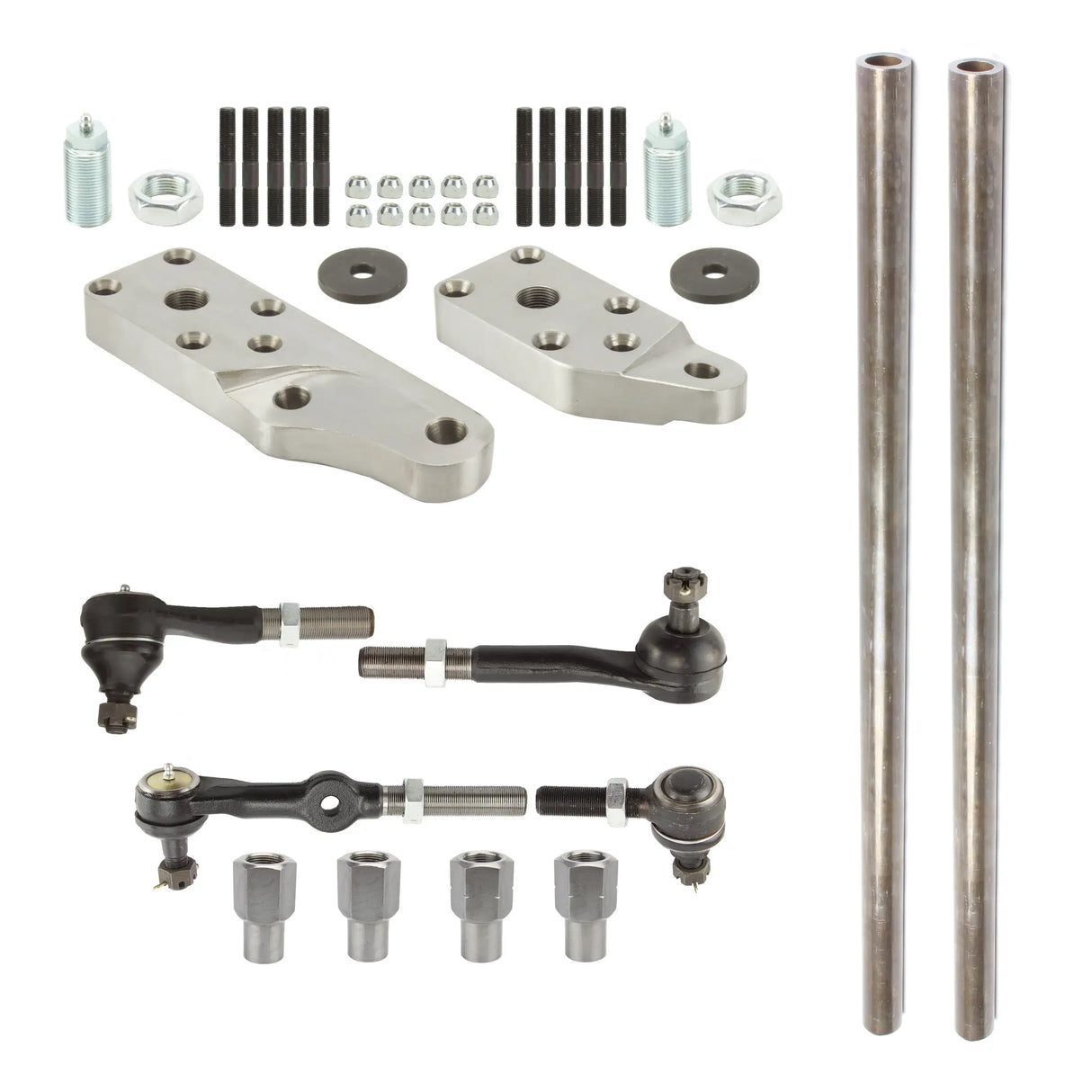

Kit Includes:

• 1 - Y link TRE (ES2233L)
• 2 - Standard TRE (TK234)
• 1 - High Angle TRE (ES2027R)
• 2 - Dana 60 High Steer Arms w/ Hardware (L & R side} machined from Cold Rolled 1018 Bar
• 10 - Dana 60 High Steer Arm Grade 10.9 Studs and Cone Nuts
• 2 RH 7/8" Jam Nuts, 18TPI for GM 1 Ton Tie Rod Ends (TRE)
• 2 LH 7/8" Jam Nuts, 18TPI for GM 1 Ton Tie Rod Ends (TRE)
• 2 - RH 7/8" 18TPI Hex Head Weld Bungs
• 2 - LH, 7/8" 18TPI Hex Head Weld Bungs
• 1 - 54" of 1.5" X .25" wall DOM tubing
• 1 - 43" of 1.5" X .25" wall DOM tubing

Additional Products you may need when installing this kit:

Reamer for GM 1 Ton TRE's

High Angle Drag Link Insert
(Qty 1 for this kit)

Tapered Knuckle Inserts
(Qty 2 for this kit)

Flat Mount Steering Stabilizer Bracket

90 Degree Steering Stabilizer Bracket
