Please see below for certain Dodge axles this kit won't work with. Requires single steel wheel 15" with a maximum 4" back spacing. These are not for dual rear wheels, they are made for single rear wheel axles. Sold as a pair!

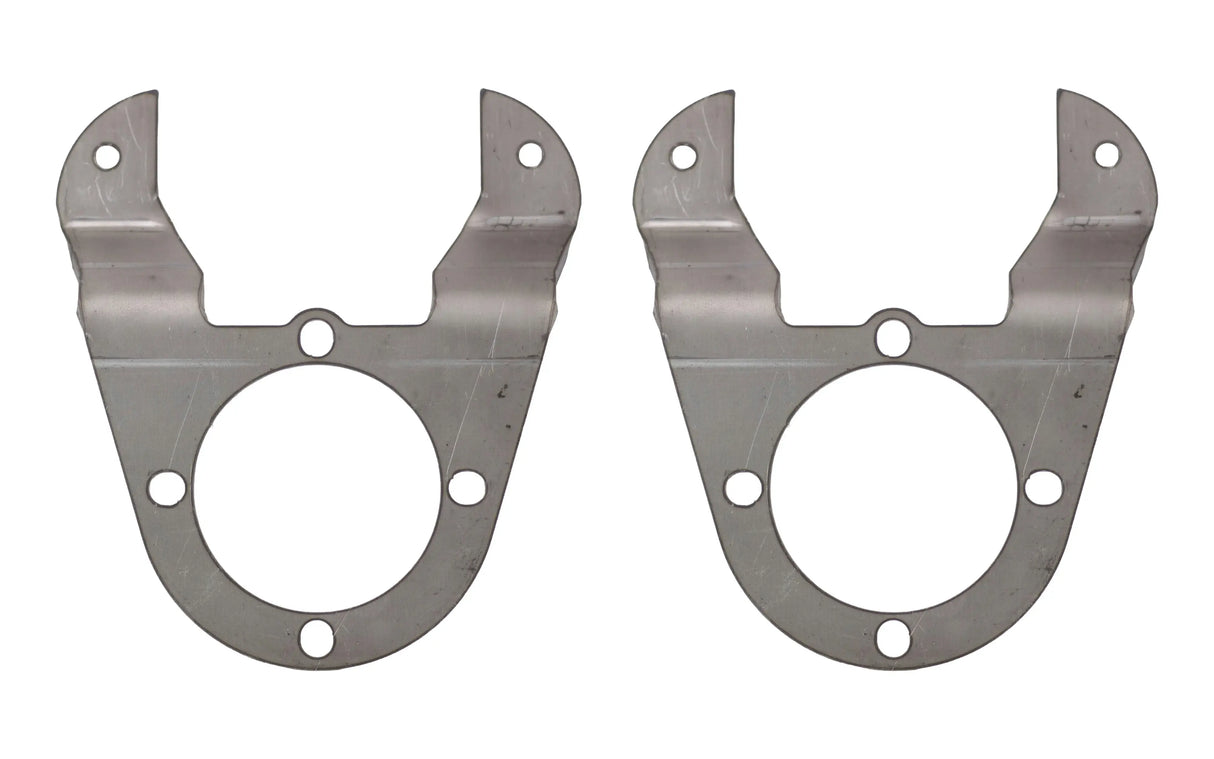

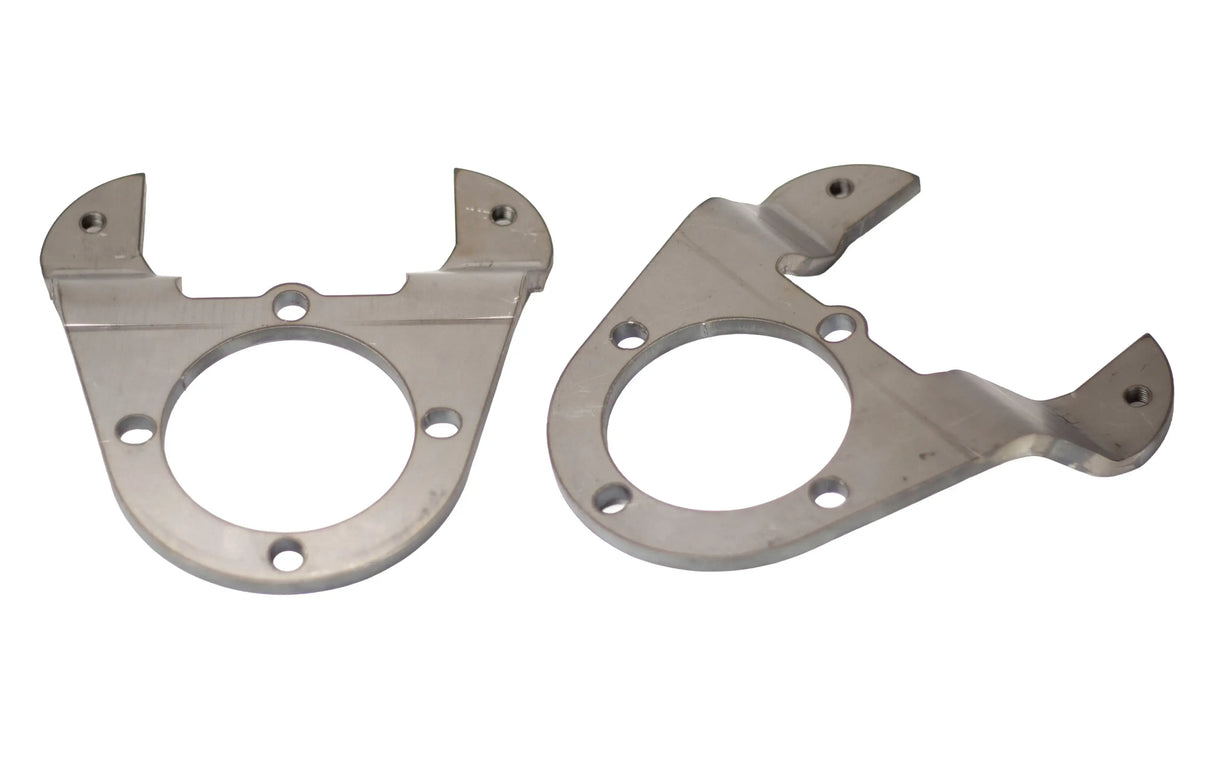

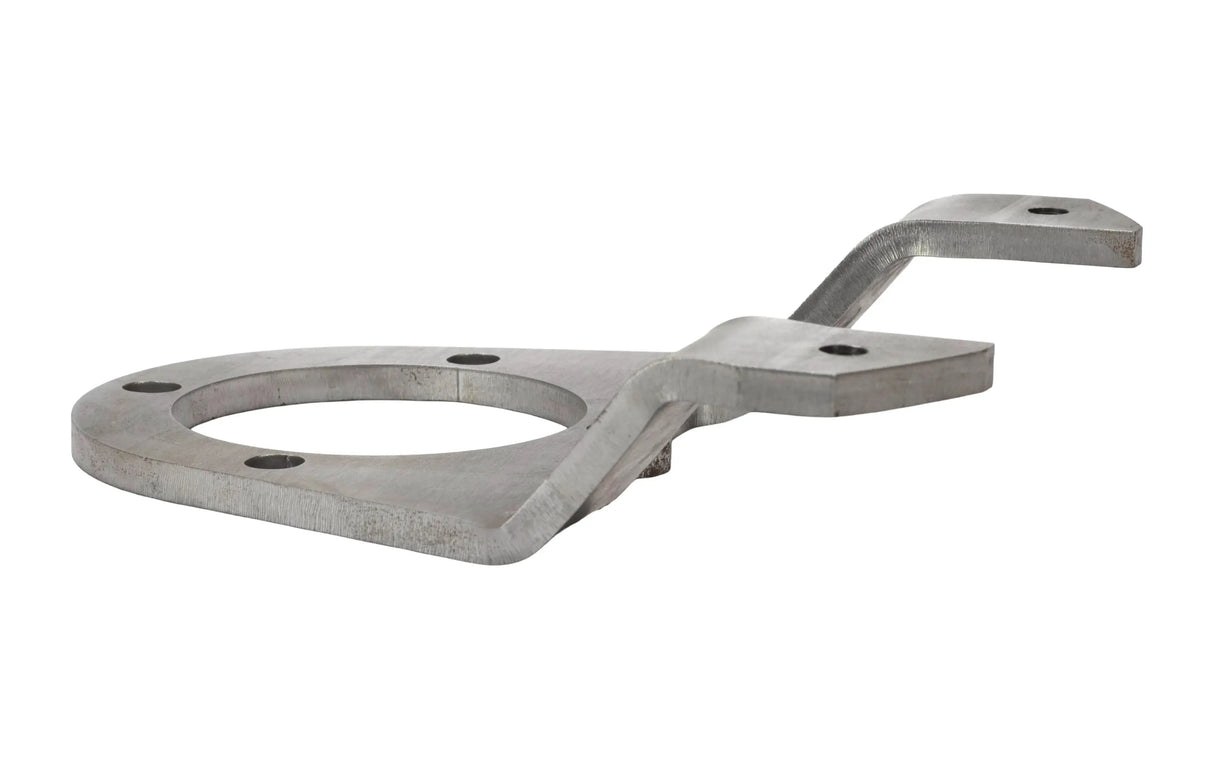

Here you are, an easy bolt on bracket for the Dodge full floating Single Wheel Dana 70 axles! This also uses the GM Rotor and Caliper for the 73-87 3/4 Ton 4x4 front with the MKD153 pads. The mounting holes fit the early and late 4 bolt flanges. All of our brackets are 3/8" thick for strength and rigidity and it costs us less to make which we can pass on to you the customer.
*NOTE* Double check stud diameter, studs should drop freely into the rotor. DO NOT press studs into the rotor. Knurl must press into hub. If your hub has too large of studs you will need to drill the rotors to accept them. Be sure to have minimum 5/8" lug nut thread engagement once the wheel is installed
Use these brackets with our calipers found here
GM Dual Bleeder Loaded Brake Caliper (ruffstuffspecialties.com) or
Cadillac El Dorado Caliper Set with Parking Brake Lever (ruffstuffspecialties.com)NAPA Part numbers for '73-'87 3/4 Ton Front, 4x4, Chevy Calipers and Rotors:
Caliper ONLY: LH - N4674, RH - N4673 - Both of these are LATER year part numbers
OR
LH - N4597, RH - N4596 - Both of these are EARLIER year part numbers
Rotor Only: - 4885677 - all years
Brake line: - H86572
Works with 1st gen Dodge Cummins 81-93 model years. To ensure this kit works with your housing measure from your 4 bolt flange to the back of the wheel hub (the surface the wheel studs press up against). This distance must be about 5.68" to ensure our kit will work*
